GTmedia v7 S5X Getty Media 7
26.64 USD

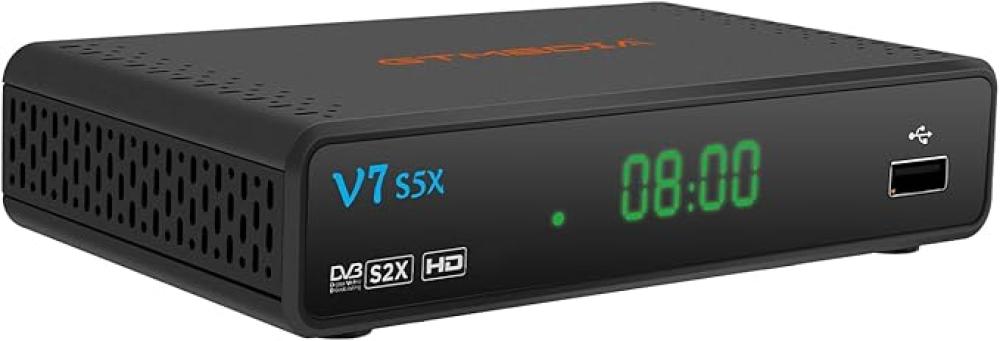

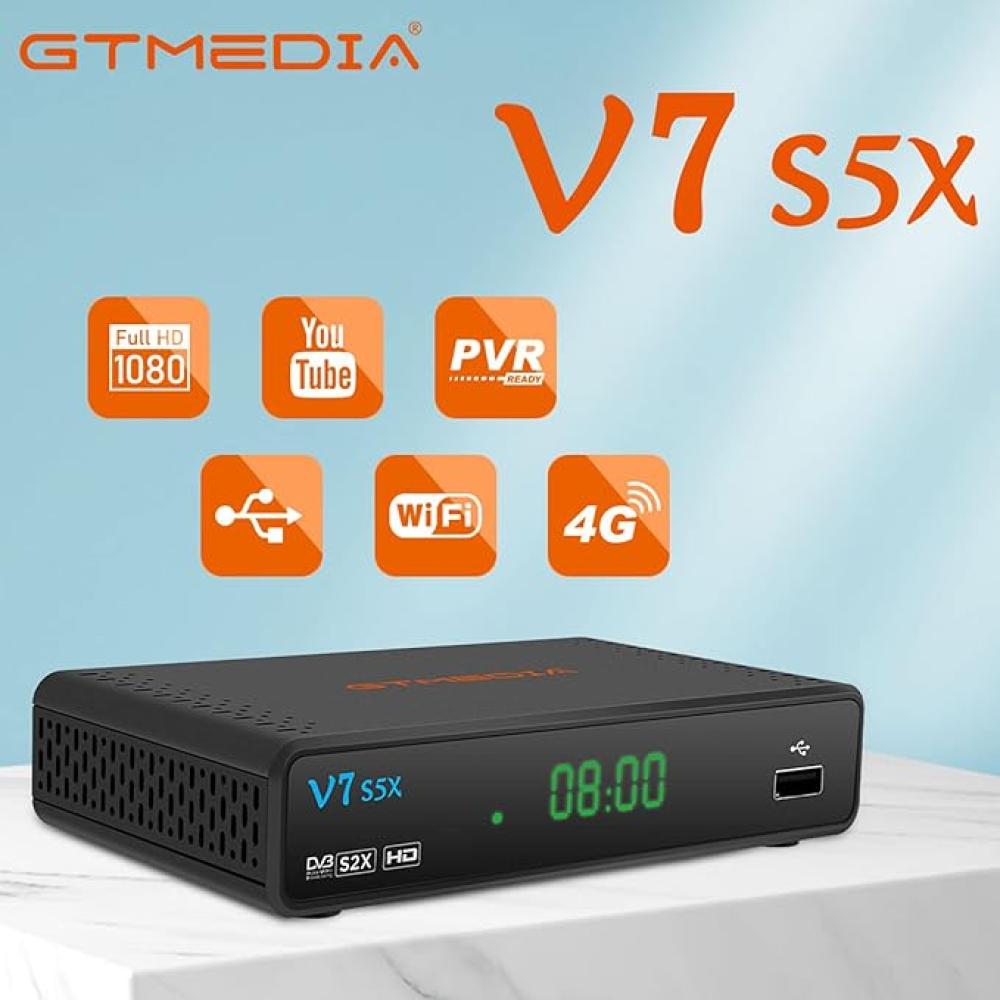

GTMEDIA V7 S5X DVB-S/S2/S2X H.265 Receiver
- Supports Biss, Full PowerVu,
- Supports USB Wi-Fi dongle. Supports Unicable, DiSEqC, and USALS motor.
- Supports H.265, AVS+, CCM, ACM, and VCM. 1080P video resolution. 6000+ programmable channels.
Product Details
GTMEDIA V7 S5X DVB-S/S2/S2X H.265 Signal Receiver
USB WiFi Set-Top Box Digital TV Receiver with Scart Output
Standard: Fully compliant with DVB-S/S2/S2X (SCPC and MCPC are due from the C/Ku band)
Subtitle: DVB EN300743 and EBU support
Unicable support, DiSEqC1.0/1.1/1.2/USALS Motor support.
H263 Baseline Profile
DDR2 Memory: 512M RAM
Image Codec: JPG, BMP, PNG, GIF
Audio Codec: WMA, MP3
PAL/NTSC: Automatic PAL/NTSC conversion
Supports USB 3/4G dongle and USB Wi-Fi dongle.
IR: 38KHz IR output, IR remote control
H.265 BP, MP & HP @ L3/L4.1/L4.2
Package weight: 466g / 16.43oz
LNB power and polarization: DiSEqC1.0/1.1/1.2/USALS full drive support, 13/18V DC @ 400mA MAX, 22KHz ± 0.4KHz (0.6V ± 0.2V) tone, overload protection
1 * User manual (EN/DE/FR/ES/IT/PO)

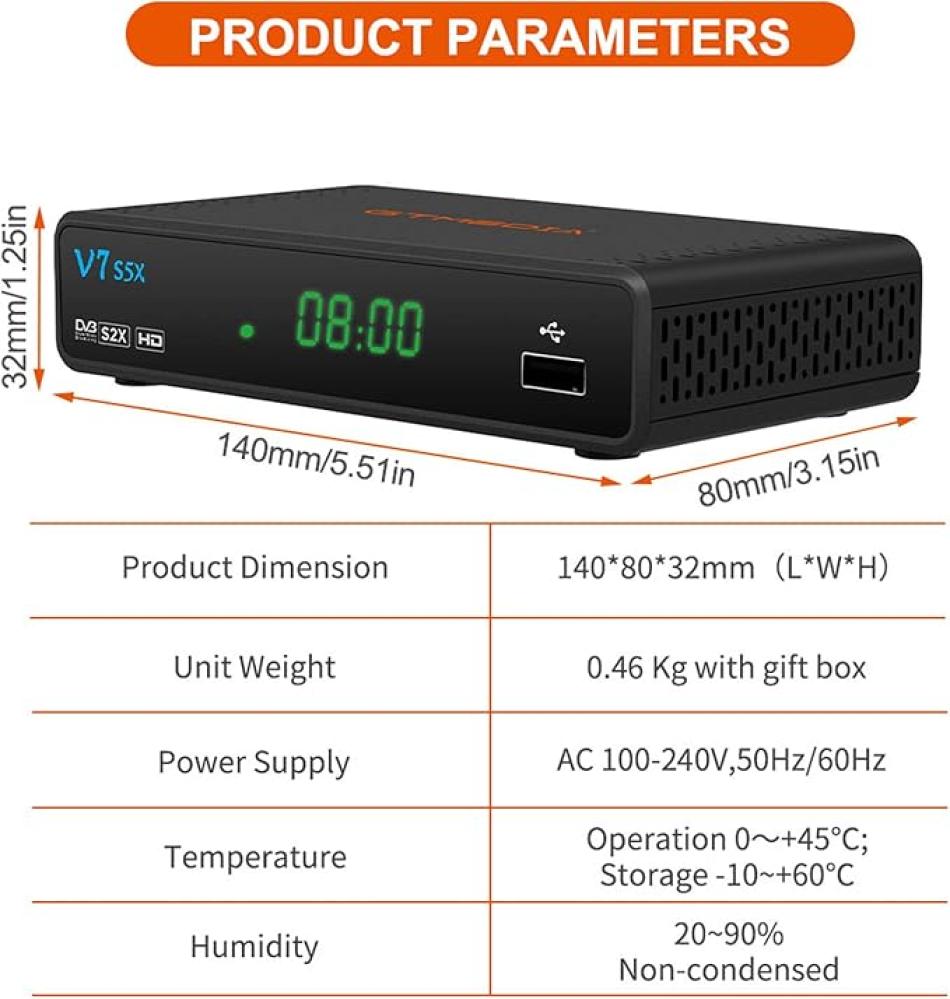

Item size: 140 * 80 * 32mm (L * W * H) / 5.51 * 3.15 * 1.26in
Sampling frequency: 32KHz, 44.1KHz, 48KHz
OSD color: OSD 16-bit with anti-flicker
Parental Control: Parental control of channels
Wi-Fi: Supports USB WiFi dongle (MTK7601/RT5370)
Audio decoding
Video resolution: 1080P, 1080I, 720P, 576P, 480P, 576I, 480I
Symbol rates: 1/2, 2/3, 3/4, 5/6, 7/8 for DVB-S; 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 5/6, 9/10 for DVB-S2, DVB-S2X Frame
Carrier frequency acquisition range: ±5MHz for symbol rates above 3 Msps and ±3MHz for other symbol rates
Symbol rates: DVB-S QPSK and DVB-S2 QPSK/8PSK/16APSK/32APSK and DVB-S2X QPSK/8PSK/16APSK/32APSK/64APSK
Input Impedance: 75Ω

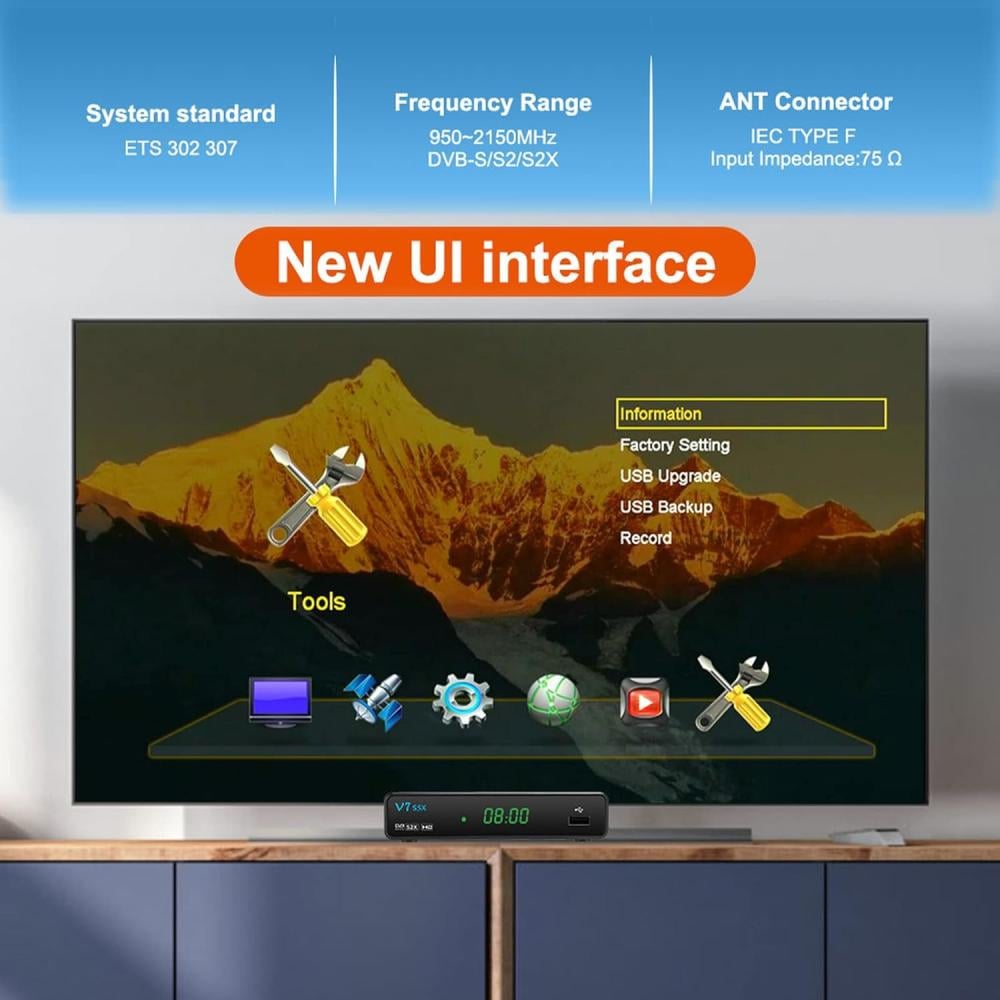

System Standard: ETS 302 307
Channel: Recording one channel, other channels can be viewed under the same TP, various channel editing functions (favorite, move, lock, skip, delete, rename, search, sort)
Main Chipsets
Video Decoding
Features:
MPEG-4 SP Profile, Simple Profile @ L5
PVR Option: USB 2.0 for PVR and Timeshift media file playback
LED Indicator: Power On: Green; Standby: Red
Time Setting: GMT time setting, automatic and manual offset, support for daylight saving time
Hardware Specifications
Flash Memory: 64MB SPI Flash
Specifications: Brand: GTMEDIAModel: V7 S5X
MPEG-1/2 Layer 1/2/3, MPEG-2/4 LC-AAC, MPEG-4 HE-AAC, AC3/AC3+, DRA/5.1CH
CPU Frequency: 770MHz Dual-Core
1 * Power Adapter
Supports the fastest auto BISS rollback, full PowerVu keying, DRE & BISS keying.
Number of Channels: 6000+ programmable TV and radio channels
Support Cccam, Newcam
Teletext: DVB ETS300472 supports VBI and OSD
Timer: 5 event timers, off/once/daily/weekly mode
FEC: 1/4, 1/3, 2/5, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
ANT. Connector: IEC Type F
Media Codec: TS, MKV, MP4, AVI, FLV, F4V, TS, M2TS, MOV, 3GP files
Audio Mode: Left/Right/STEREO/MONO
Easy Menu: Plug-and-play installation, with a user-friendly menu system
OSD Language: Multilingual OSD options (English, Spanish, French, Russian, Portuguese, Polish, Indonesian, Arabic, Turkish, German, Italian, Persian, Thai)
Audio Decoding:
VC1 SP@ML, MP@HL, AP@L0-3
Package List:
Supports DVB-S/S2/S2X, H.265 (8bit), AVS+, CCM, ACM, VCM, and Multistream/T2-MI.
Input Level Range: -80 dB ~ -25 dB
Channel Editing: Various channel editing functions (favorite, move, lock, skip, delete, rename, search, sort)
Favorites: 16 different selections
Frequency Range: 950 ~ 2150MHz for DVB-S/S2/S2X
EPG: Full 7-day EPG support

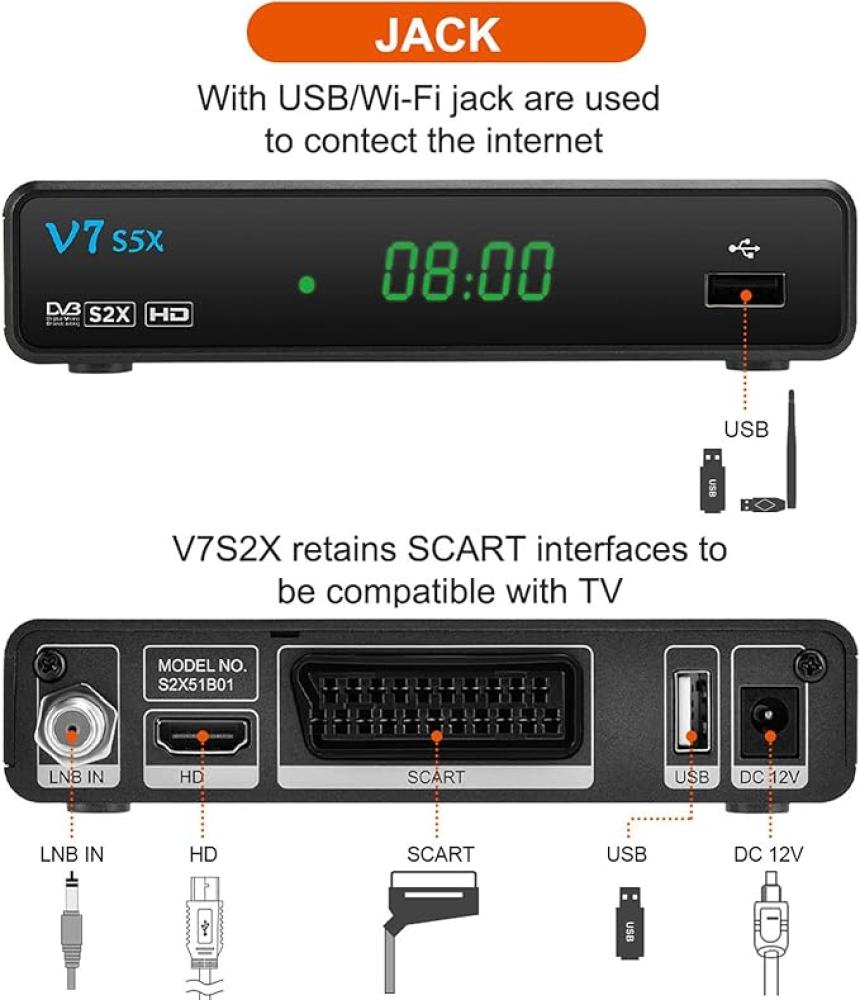

Rear Panel: LNB IN (frequency range 950 MHz to 2150 MHz for DVB-S/S2/S2X); OUT (up to 1080P); SCART OUT; 2 * USB 2.0 HOST Power (DC 12V/1.5A)
Symbol Rates: 2~90MSPS (1/2 symbol rate)
Subprogram Features
Panel Display: 4-Digit LED
